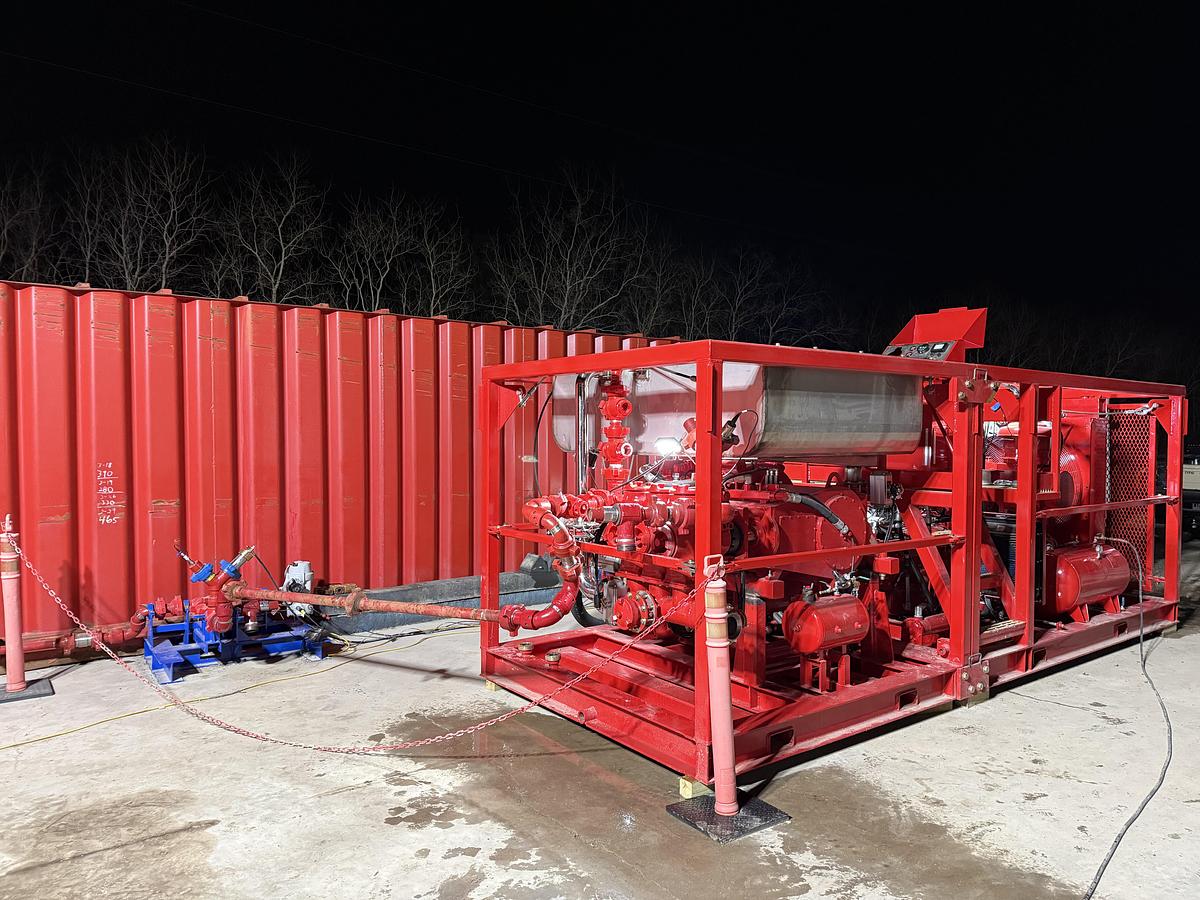

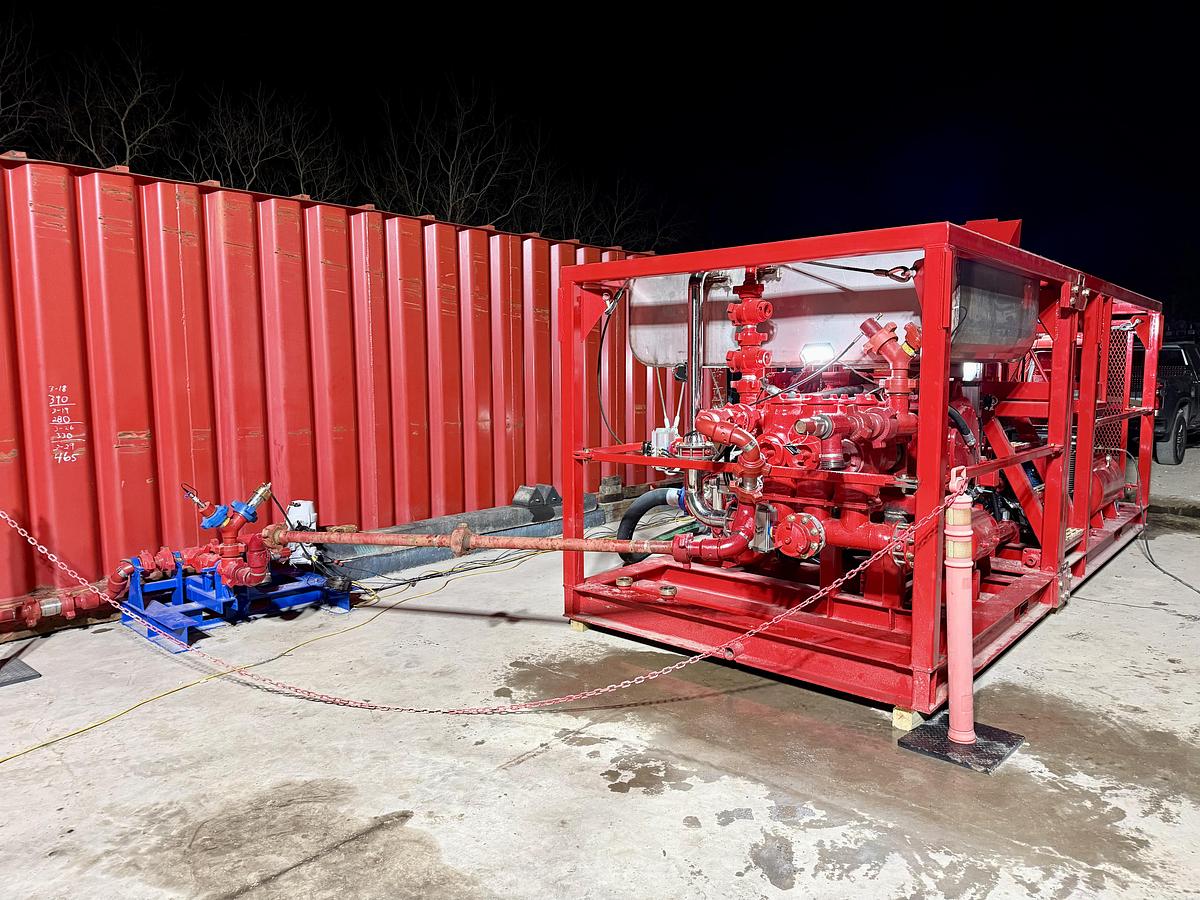

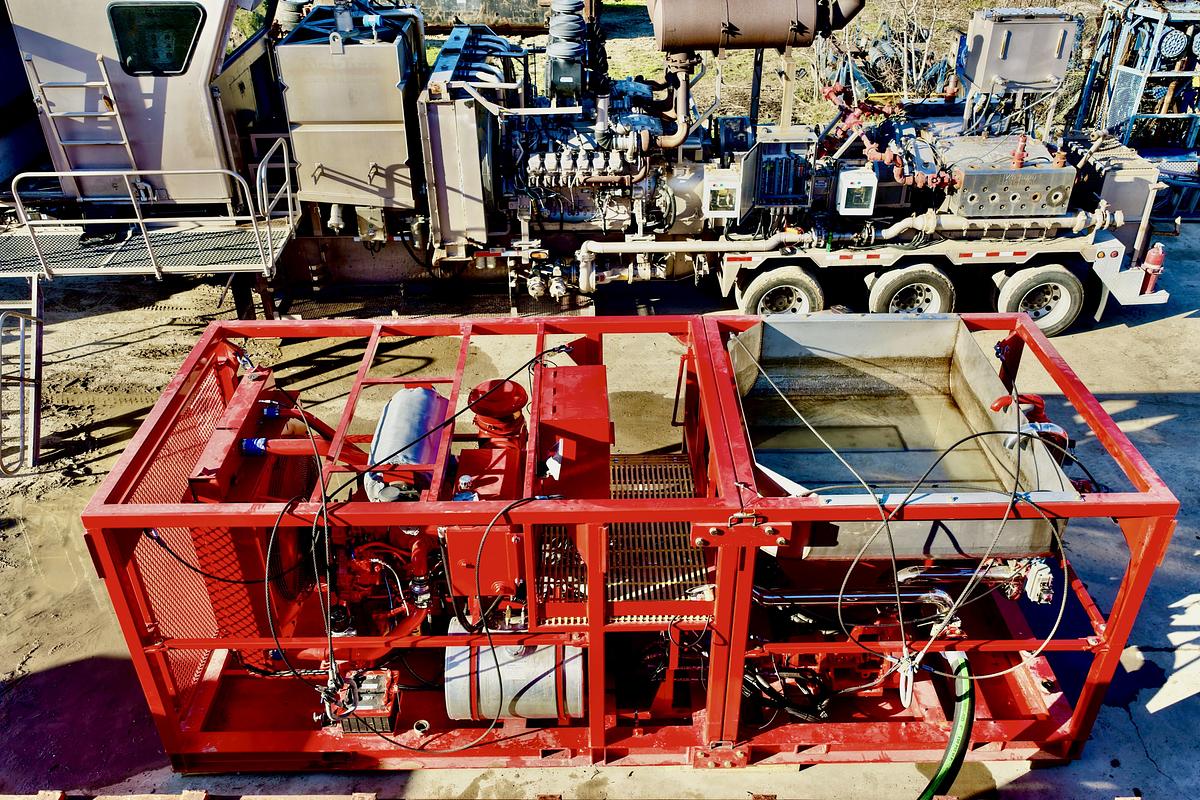

2026 Twin HT-400 Fluid Pumper Skid

(2026 Twin HT-400 665HP HT-400 Pump Skid)

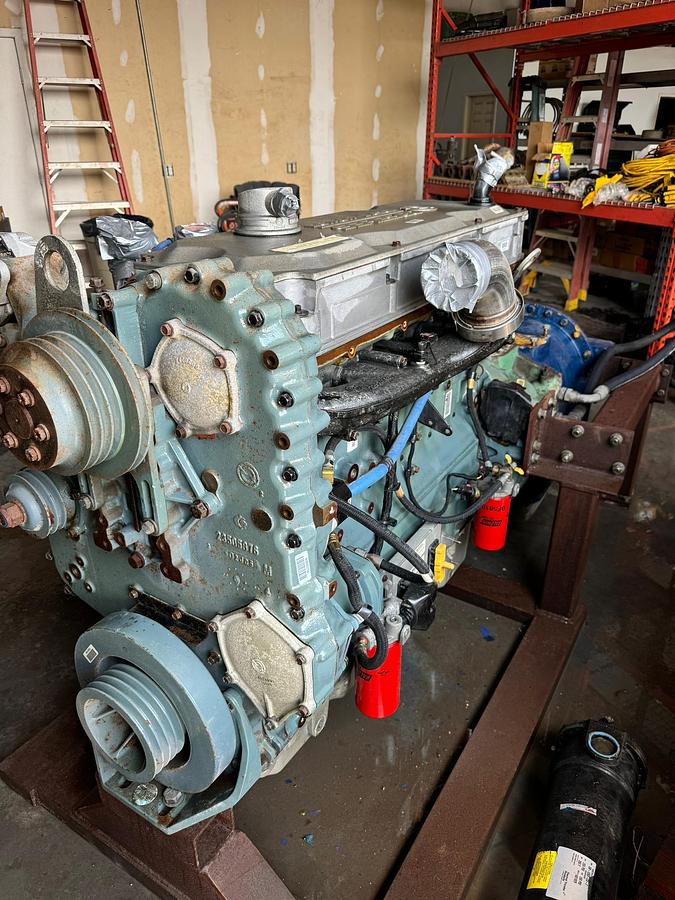

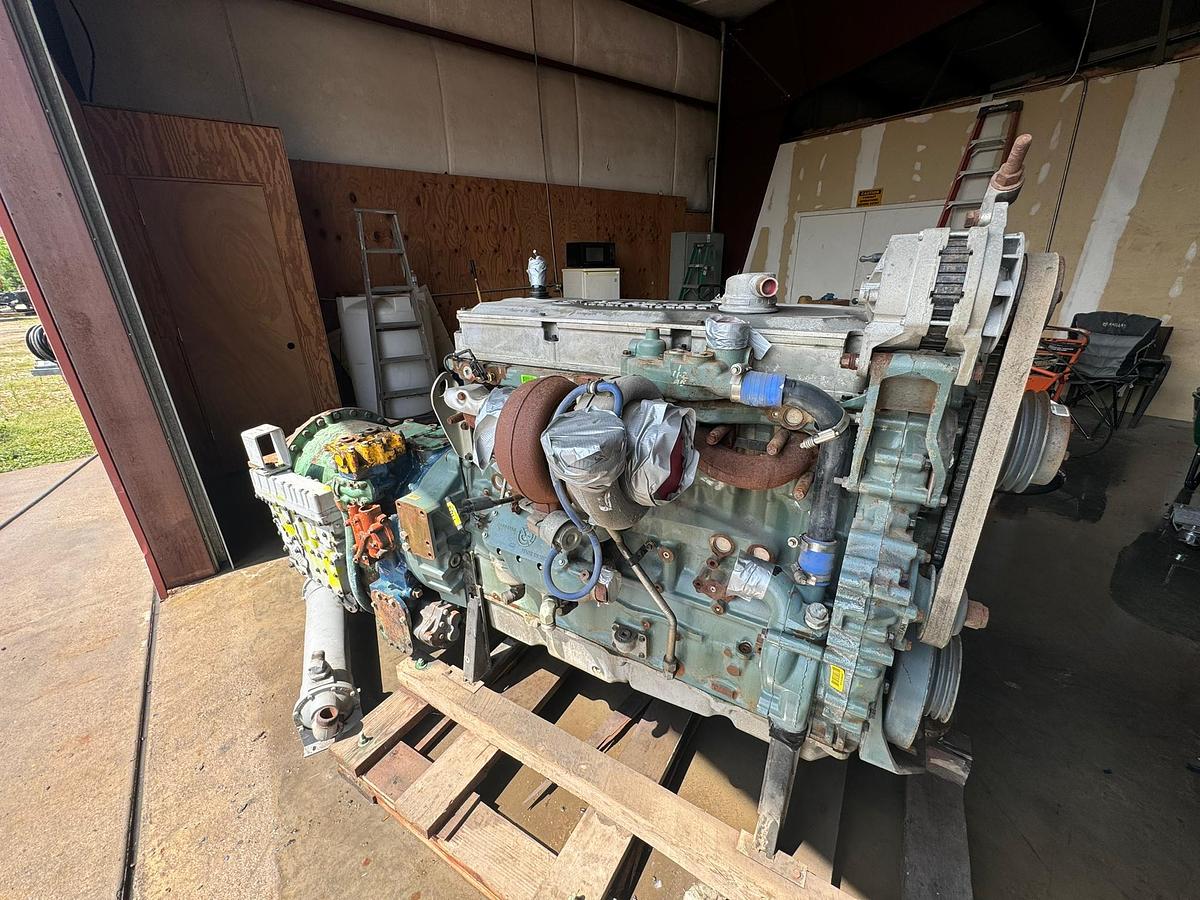

2X>Detroit Diesel Series 60, 14.0L [Zero Hour Rebuilds] (Dyno Tested) 665HP Each

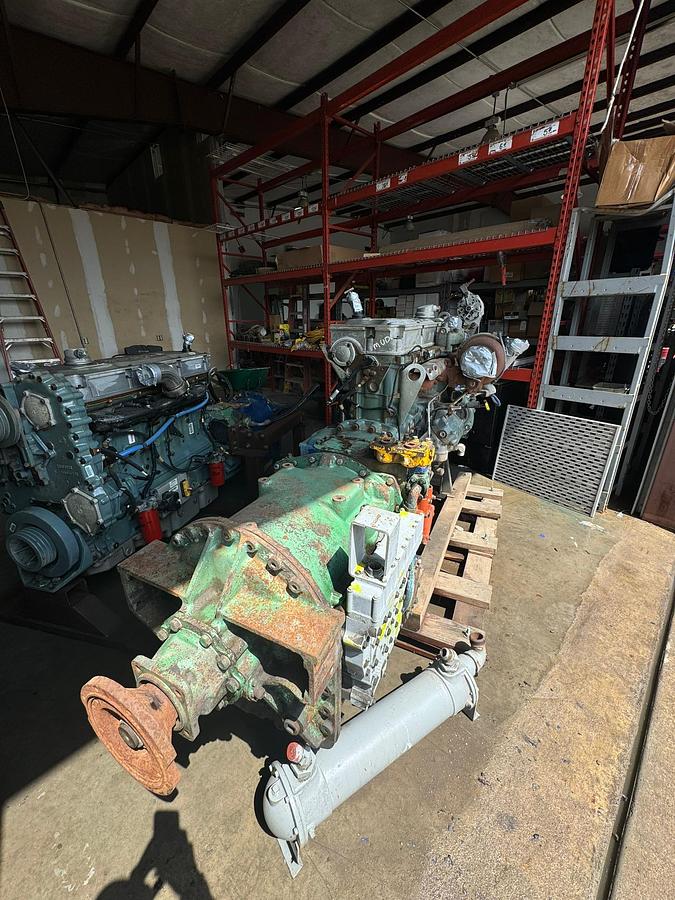

2X>Allison CLT-5860 Trans, 6 Spd, (Dyno Tested), With Heat Exchangers

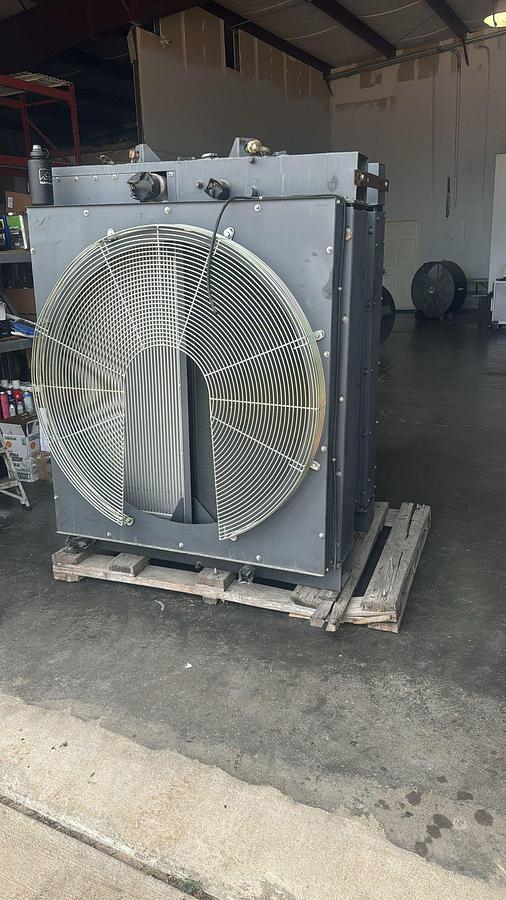

-Radiator/Intake/Exhaust/Control Box/Harnesses/Shifter Control

2X>HT-400 Triplex, 4.5" Plungers 11,200 PSI MAWP Triplex Pump (Rebuilt Fluid End/ Power End)

-Halliburton HT-400 Triplex Pump, HOLROYD (8.6:1) gear ratio pump, good for 600HP, RH and LH Power Ends [Rebuilt & Tested]

-Halliburton HT-400 Original 4.50" Fluid end, Packed for ACID SERVICE, Dual Discharge Horns

[Rebuilt & Tested]

>Skidded package, with 2-piece split skid construction for ease of loading on offshore platforms

[Nigeria Restrictions for Platforms of 15 Tons Max Loading w/o Special Permit]

›Includes Square tubing cage with lifting eyes, Collision protection barriers, and Forklift Pockets, [Per customer provided spec] Load tested to 1.5x the total skid weight, and NDT Test of Weldements after load testing

>Air supply tank with packing lube tanks and lube line injectors, to be interconnected to starter surge tank

>Hydraulics package with FC-51 Flow Control Valve, Constant Mesh PTO, Hydraulic Pumps, 60 Gallon Hydraulic Tank and Hydraulic Fluid Cooler

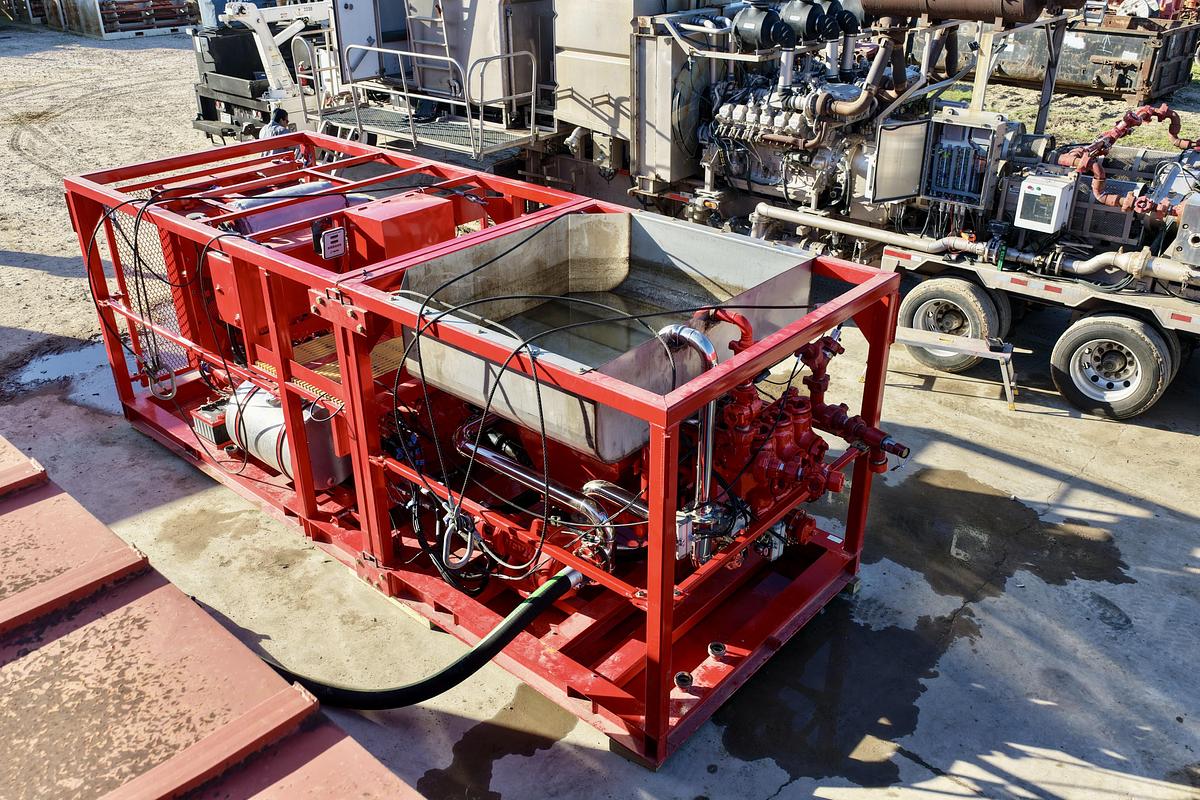

2X>12-15 BBL 304 Stainless Steel Static Open Top Displacement tank, with 304-L

Stainless Steel mixing manifold, boosting manifold and fittings

>Air Actuated Stainless Steel Butterfly Valves, and Visual BBL Level Marker

>MCM 4x3" Spline Driven C Pumps W/ Hydraulic motor coupling, Flow Control Valves for C Pump Speed [Pumps will be ordered with ACID Seals, Stainless bodies and Stainless Steel Impeller]

>Discharge Manifolds Consisting of 2x1" and 2x2" plug valves, and 2" integral 1502 straight joints

>Operator controls consisting of engines controls and parameter gauges, transmission controls and lock up signals, Pressure gauge and MC-I| Nuflo totalizer display, Dycor Smartvue DAQ Digital display, Emergency Kills (Flapper Valve), and other unit parameters/controls

>6" Pressure Gauges 15K Psi with Pressure Trip Needle Kit, 1:1 Pressure Hoses and 2" 1502 Diaphragm Protectors

>2" 1502 Pop Off Valves (Pre-Set to 11K Psi)

>Driveline 1810 custom shafts, W/ reluctor wheels for Mag Pick Ups

>Pneumatic/ Air Starters on Engines, with 75 Gallon Horizontal Supply Tank

2X

>75 Gallon Round Aluminum Diesel Fuel Tank

-Transmission Oil Coolers & Power End Oil Coolers

>Exterior Exhaust Insulation/ Sheathing

>Schedule 40 Drain Pans

>LED Work lights to improve operator visibility, operated from Ops Console

>Unit Kills Electrical Disconnect, Ignition Switch, Pneumatic E-Kill, MasterPower Switch

›Single Color paint, Epoxy Primer and Additional Acid Prep for Entire Skid, Thicker Coating on Drip Pans, and Topcoat (RAL 1007 WEAFRI YELLOW)

Lead Time 16-20 Weeks

(60% Downpayment)

(20% Milestone 1 (Fabbed/Painted)

(20% Milestone 2 (Upon Delivery/ After Testing)

$965,000.00
